Product Construction
| Backing material | PE foam |
| Color | white |
| Colour of liner | yellow |
| Thickness of liner | 70 µm |
| Total thickness | 1050 µm |
| Type of adhesive | synthetic rubber |
| Type of liner | glassine |
| Weight of liner | 80 g/m² |

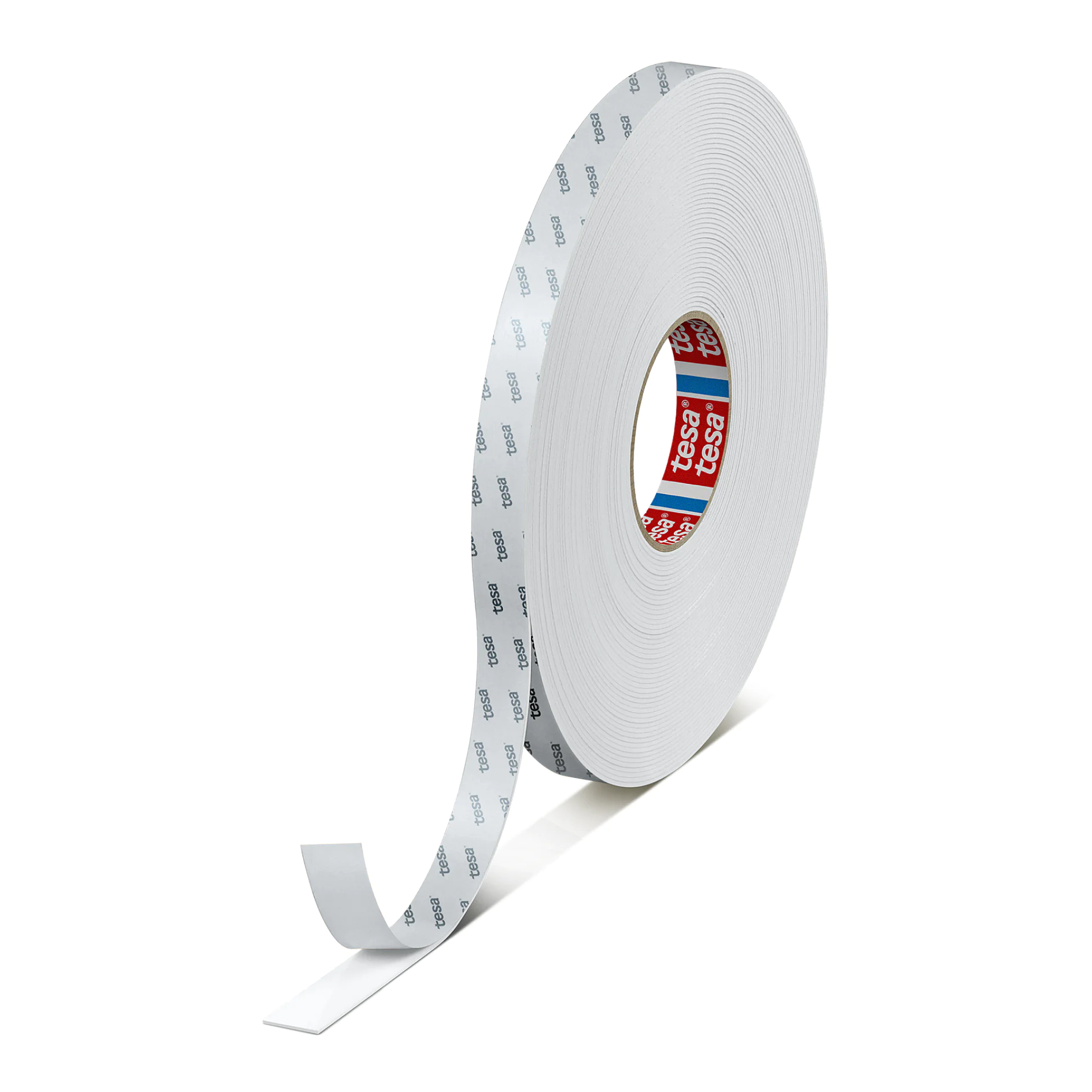

tesa® 64958
Double-sided PE foam mounting tape
Product description
tesa® 64958 is a white double-sided tape for general mounting with a PE-foam backing and a synthetic rubber adhesive.
tesa® 64958 features especially:
- Highly conformable PE-foam
- High immediate bonding strength even on rough or uneven surfaces
- High bonding strength at low mounting pressure
- High bonding strength on low surface energy substrates
Product details and specifications
Application Fields
- Construction of POS-displays
- Mounting of indoor signs and posters
- Mounting of shelf edge labelling systems
- Additional dampening and anti-rattle
Product Construction
| Backing material | PE foam |
| Color | white |
| Colour of liner | yellow |
| Thickness of liner | 70 µm |
| Total thickness | 1050 µm |
| Type of adhesive | synthetic rubber |
| Type of liner | glassine |
| Weight of liner | 80 g/m² |
Properties / Performance Values
| Elongation at break | 200 % |
| Tensile strength | 7 N/cm |
| Static shear resistance at 40°C | medium |
| Temperature resistance long term | 40 °C |
| Softener resistance | medium |
| Tack | good |
| Temperature resistance short term | 60 °C |
| Chemical resistance | medium |
| Humidity resistance | good |
| Ageing resistance (UV) | medium |
Properties / Performance Values
| Elongation at break | 200 % |
| Tensile strength | 7 N/cm |
| Static shear resistance at 40°C | medium |
| Temperature resistance long term | 40 °C |
| Softener resistance | medium |
| Tack | good |
| Temperature resistance short term | 60 °C |
| Chemical resistance | medium |
| Humidity resistance | good |
| Ageing resistance (UV) | medium |
Adhesion to Values
| Adhesion to PC (initial) | 4 N/cm |
| Adhesion to PC (after 14 days) | 4 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PE (after 14 days) | 4 N/cm |
| Adhesion to PET (initial) | 4 N/cm |
| Adhesion to PET (after 14 days) | 4 N/cm |
| Adhesion to PP (initial) | 4 N/cm |
| Adhesion to PP (after 14 days) | 4 N/cm |
| Adhesion to PVC (initial) | 4 N/cm |
| Adhesion to PVC (after 14 days) | 4 N/cm |
| Adhesion to Steel (initial) | 4 N/cm |
| Adhesion to Steel (after 14 days) | 4 N/cm |
Adhesion to Values
| Adhesion to PC (initial) | 4 N/cm |
| Adhesion to PC (after 14 days) | 4 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PE (after 14 days) | 4 N/cm |
| Adhesion to PET (initial) | 4 N/cm |
| Adhesion to PET (after 14 days) | 4 N/cm |
| Adhesion to PP (initial) | 4 N/cm |
| Adhesion to PP (after 14 days) | 4 N/cm |
| Adhesion to PVC (initial) | 4 N/cm |
| Adhesion to PVC (after 14 days) | 4 N/cm |
| Adhesion to Steel (initial) | 4 N/cm |
| Adhesion to Steel (after 14 days) | 4 N/cm |
Additional Info
Peel Adhesion:
- immediately: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PE
- after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PP, PE
- immediately: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PE
- after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PP, PE
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
