Product Construction
Color | black |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 100 µm |
Type of adhesive | modified acrylic |
Type of liner | PET |
Weight of liner | 72 g/m² |

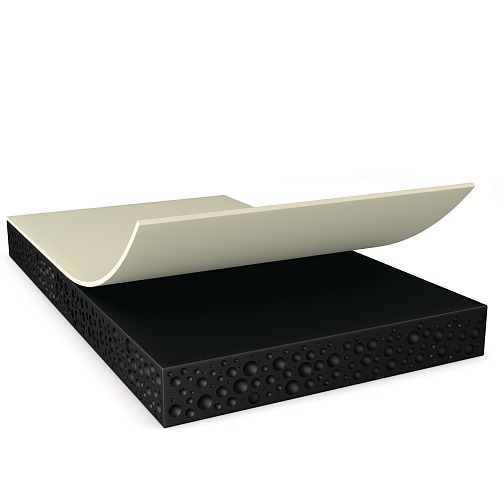

100µm double sided black flexible acrylic foam tape
tesa® 75410 is a double-sided black tape consisting of a high shock absorbing black acrylic foam.
tesa® 75410 features:
Color | black |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 100 µm |
Type of adhesive | modified acrylic |
Type of liner | PET |
Weight of liner | 72 g/m² |
Color | black |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 100 µm |
Type of adhesive | modified acrylic |
Type of liner | PET |
Weight of liner | 72 g/m² |
Transmittance (380 - 780nm) < | 0.5 % |
Temperature resistance short term | 140 °C |
Static shear resistance at 23°C | good |
Ageing resistance (UV) | very good |
Static shear resistance at 40°C | good |
Temperature resistance long term | 90 °C |
Transmittance (380 - 780nm) < | 0.5 % |
Temperature resistance short term | 140 °C |
Static shear resistance at 23°C | good |
Ageing resistance (UV) | very good |
Static shear resistance at 40°C | good |
Temperature resistance long term | 90 °C |
Adhesion to Aluminium (initial) | 7.2 N/cm |
Adhesion to Aluminium (after 3 days) | 9.4 N/cm |
Adhesion to Glass (initial) | 11.4 N/cm |
Adhesion to Glass (after 3 days) | 11.9 N/cm |
Adhesion to PC (initial) | 9.8 N/cm |
Adhesion to PC (after 3 days) | 12.3 N/cm |
Adhesion to Steel (initial) | 11.6 N/cm |
Adhesion to Steel (after 3 days) | 13.1 N/cm |
Adhesion to Aluminium (initial) | 7.2 N/cm |
Adhesion to Aluminium (after 3 days) | 9.4 N/cm |
Adhesion to Glass (initial) | 11.4 N/cm |
Adhesion to Glass (after 3 days) | 11.9 N/cm |
Adhesion to PC (initial) | 9.8 N/cm |
Adhesion to PC (after 3 days) | 12.3 N/cm |
Adhesion to Steel (initial) | 11.6 N/cm |
Adhesion to Steel (after 3 days) | 13.1 N/cm |
Download the files below for more technical details and information on this product.
