Strong adhesion even to low surface engery substrates
Easy and reliable removability even after long bonding time
All product featuresProduct description

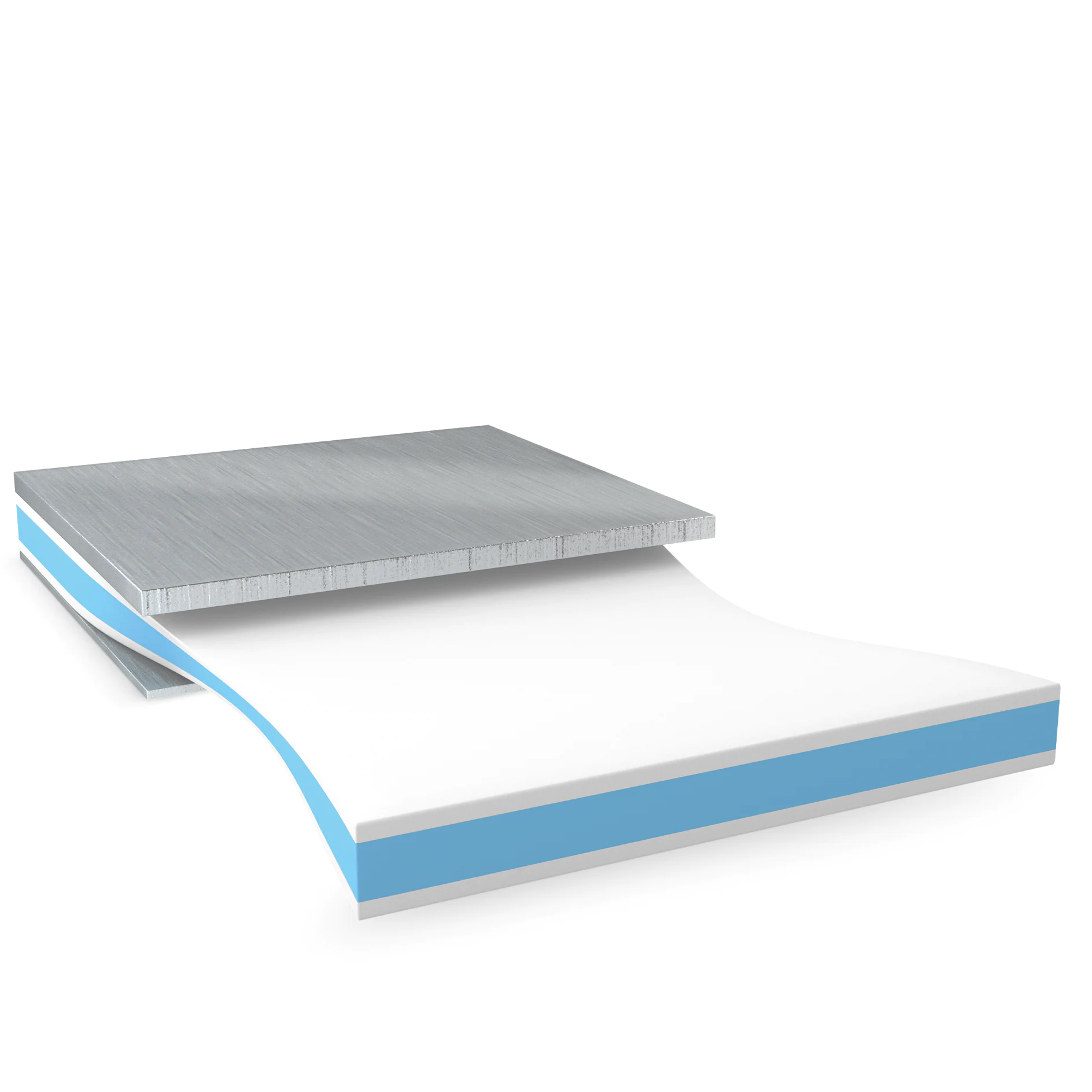

Double sided specialty adhesive tape for reliable bonding of components over the lifetime of a car with the additional feature to release the bond, leaving no residues behind.
Our Bond & Detach® solutions offer the possibility to rework high value components during the production process enhancing process efficiency by decreasing reworking time, effort and scrap cost.
The stretch-release mechanism used to debond our Bond & Detach® needs no additional heat, cold or liquids that would endanger surrounding materials and leaves clean and residue-free substrates. This enables an easy reuse of the bonded high value components.
Its high temperature- and humidity-resistance allows for the usage in various automotive applications such as display mounting, bonds in ADAS components and EV systems. Furthermore our 76555 is perfectly suited for temporary applications during production.
The white color allows for automated application and prevents light leakage.
Product details and specifications
Product Features
High initial bonding strength
Strong adhesion even to low surface engery substrates
Easy and reliable removability even after long bonding time
Residue-free
Light blocking
PFAS free
Application Fields
Target markets for tesa Bond & Detach® 76555 are automotive display mounting, E-mobility and ADAS systems. It can be used in light weight permanent mounting applications in displays such as FPCs/PCBs as well as in ADAS sensors. Temporary applications such as tracking devices during production or temporary protection are reliably bond and detached with this product as well.
Product Construction
Backing material
none
Color
white
Colour of liner
transparent
Total thickness
500 µm
Type of adhesive
specialty
Type of liner
PET
Product Construction
Backing material
none
Color
white
Colour of liner
transparent
Total thickness
500 µm
Type of adhesive
specialty
Type of liner
PET
Properties / Performance Values
Elongation at break
700 %
Tensile strength
60 N/cm
Temperature resistance long term
90 °C
Static shear resistance at 23°C
very good
Temperature resistance short term
120 °C
Properties / Performance Values
Elongation at break
700 %
Tensile strength
60 N/cm
Temperature resistance long term
90 °C
Static shear resistance at 23°C
very good
Temperature resistance short term
120 °C
Adhesion to Values
Adhesion to PC (after 3 days)
24 N/cm
Adhesion to PE (initial)
13 N/cm
Adhesion to PE (after 14 days)
13 N/cm
Adhesion to Steel (initial)
30 N/cm
Adhesion to Values
Adhesion to PC (after 3 days)
24 N/cm
Adhesion to PE (initial)
13 N/cm
Adhesion to PE (after 14 days)
13 N/cm
Adhesion to Steel (initial)
30 N/cm
Additional Info
Static shear at 90°C was loaded with 500 g. At room temperature the tape holds 1000 g static shear load for over 10000 minutes.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
