Product Construction
| Backing material | foamed acrylic |
| Color | grey |
| Total thickness | 1500 µm |
| Type of adhesive | LSE |

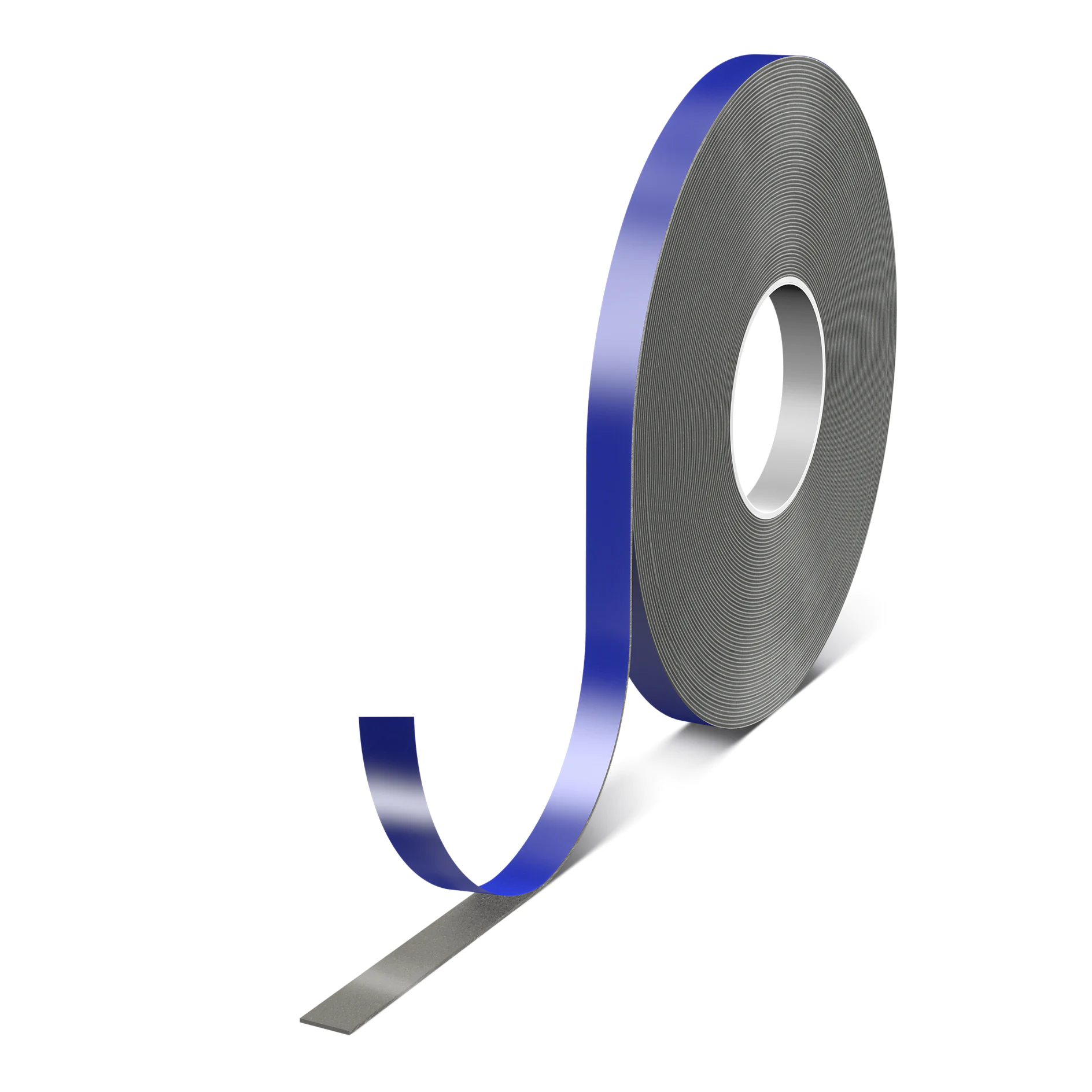

tesa® ACXplus 77715 Primerless Line
1.5 mm double-sided acrylic foam tape for mounting of automotive exterior attachment parts
Product Features
- High performance on LSE plastics without primer
- Superior peel adhesion on PP substrates even at an application temperature as low as 5°C
- PFAS / PFOS free Product
Product description
tesa® ACXplus 77715 is a 1.5 mm acrylic foam tape with an unique double-layer asymmetrically designed product, coated on one side with LSE adhesive. It can help eliminate the primer in the process. Its high-performance LSE adhesive creates an efficient and secure bond to typical automotive attachment parts made of LSE (like PP and PP/EPDM) and MSE (like ABS) plastics without primer.
In addition, our product has excellent adhesive properties when it comes to easy-to-bond OEM clear coats. Thanks to its viscoelastic acrylic foam core, tesa® ACXplus 77715 has the ability to absorb and dissipate dynamic and static loads.
Also available in 0.8 mm and 1.1 mm formats.
1 LSE: low surface energy, MSE: medium surface energy
Product details and specifications
Product Features
- High performance on LSE plastics without primer
- Superior peel adhesion on PP substrates even at an application temperature as low as 5°C
- PFAS / PFOS free Product
- Excellent bonding level right after application
- Excellent bonding stability at a wider range of temperatures
- Efficient and robust application
- Viscoelastic acrylic foam core to compensate for different thermal elongation of bonded parts
- Outstanding wet-out property
- High humidity and UV resistance
- In addition, our product has excellent adhesive properties when it comes to easy-to-bond OEM clear coats.
- Thanks to its viscoelastic acrylic foam core, tesa® ACXplus 77715 has the ability to absorb and dissipate dynamic and static loads.
Application Fields
tesa® ACXplus 77715 Primerless Line is suitable for a wide range of exterior attachment part mounting applications.
Example applications are:
Example applications are:
- Body side moldings and decorative trims
- Emblems
- Spoilers
- Antennas
- Pillar appliqués
Product Construction
| Backing material | foamed acrylic |
| Color | grey |
| Total thickness | 1500 µm |
| Type of adhesive | LSE |
Properties / Performance Values
| Ageing resistance (UV) | good |
| Humidity resistance | very good |
| Temperature range | -40 to +80 |
Properties / Performance Values
| Ageing resistance (UV) | good |
| Humidity resistance | very good |
| Temperature range | -40 to +80 |
Adhesion to Values
| Adhesion to ABS (initial) | 27 N/cm |
| Adhesion to ABS (covered side, after 3 days) | 13 N/cm |
| Adhesion to ABS (after 3 days) | 33 N/cm |
| Adhesion to ABS (covered side, initial) | 8 N/cm |
| Adhesion to PP (initial) | 30 N/cm |
| Adhesion to PP (after 3 days) | 42 N/cm |
| Adhesion to Steel (initial) | 31 N/cm |
| Adhesion to Steel (covered side, after 3 days) | 26 N/cm |
| Adhesion to Steel (covered side, initial) | 12 N/cm |
| Adhesion to Steel (after 3 days) | 37 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 27 N/cm |
| Adhesion to ABS (covered side, after 3 days) | 13 N/cm |
| Adhesion to ABS (after 3 days) | 33 N/cm |
| Adhesion to ABS (covered side, initial) | 8 N/cm |
| Adhesion to PP (initial) | 30 N/cm |
| Adhesion to PP (after 3 days) | 42 N/cm |
| Adhesion to Steel (initial) | 31 N/cm |
| Adhesion to Steel (covered side, after 3 days) | 26 N/cm |
| Adhesion to Steel (covered side, initial) | 12 N/cm |
| Adhesion to Steel (after 3 days) | 37 N/cm |
Additional Info
- Static shear resistance tested with 25 mm x 25 mm tape on steel, 200 g weight
- Liner: PV15 = royal blue siliconized HDPE film liner
- Temperature range: values are load dependent
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
