Product Construction
| Backing material | flat paper |
| Color | blue |
| Total thickness | 80 µm |
| Type of adhesive | repulpable tackified acrylic |
| Type of liner | repulpable siliconised paper |

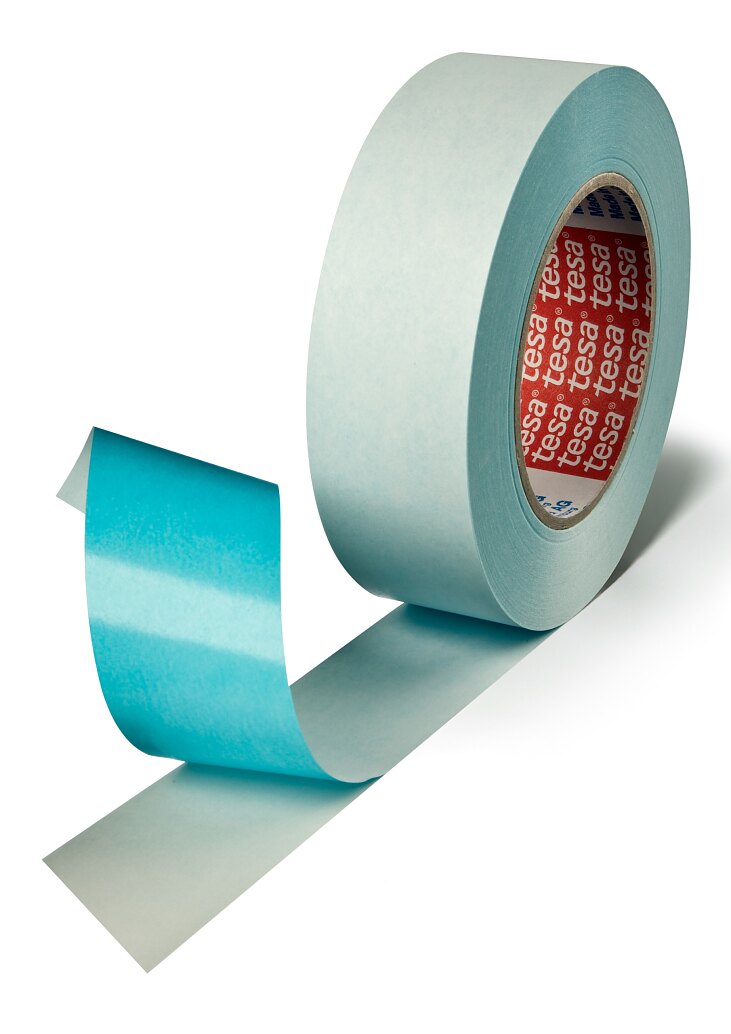

tesa® CaRes 51445 PV11
Repulpable, single-sided splicing tape
Product description
tesa CaRes® 51445 is a single-sided repulpable splicing tape, with a liner consisting of a flat-back paper and a modified water soluble acrylic adhesive.
tesa CaRes® 51445 special features:
- The patented calcium resistant adhesive (CaRes) for a maximised life time of permanent splices on papers containing calcium carbonate (CaCO3)
- Thin but strong backing to allow a low total splice thickness
- Printable and coatable backing for easy further processing
- Very high shear strength
- Very high heat resistance
- Very good adhesion values on most paper grades
tesa CaRes® 51445 is certified by independent laboratories for:
- Repulpability according to TAPPI UM-213 over full pH-range (pH3 – pH9)
- Resistance against calcium carbonate (CaCO3) according to PTS 302/13
Product details and specifications
Application Fields
tesa CaRes® 51445 is particularly suitable for:
- Manual permanent butt-splicing
- Use in automatic butt-splice applicators
Product Construction
| Backing material | flat paper |
| Color | blue |
| Total thickness | 80 µm |
| Type of adhesive | repulpable tackified acrylic |
| Type of liner | repulpable siliconised paper |
Properties / Performance Values
| Elongation at break | 6 % |
| Tack | medium |
| Shelf life time (packed) < 25°C | 12 months |
| Static shear resistance | very good |
| Tensile strength (crosswise) | 30 N/cm |
Properties / Performance Values
| Elongation at break | 6 % |
| Tack | medium |
| Shelf life time (packed) < 25°C | 12 months |
| Static shear resistance | very good |
| Tensile strength (crosswise) | 30 N/cm |
Additional Info
Other products for butt-splicing:
- tesa® 51444 - reduced thickness for thinner splices
- tesa® 51455 - slit liner for easier manual splice application
- tesa® 51465 - slit liner and splitting strip for secure tape fixation during the manual splice preparation
- tesa® 61445 - black backing for optical detection
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
