Product Construction
| Backing material | flat paper |
| Color | blue |
| Total thickness | 90 µm |
| Type of adhesive | repulpable tackified acrylic |
| Type of liner | repulpable siliconised paper |

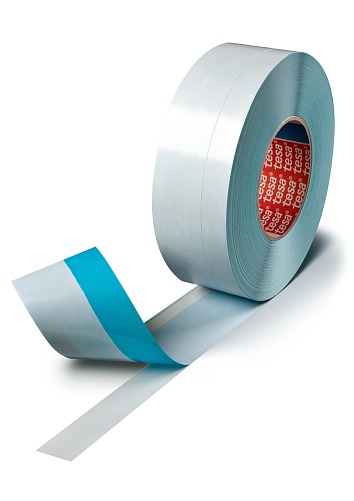

tesa® EasySplice 61170 CalenderLine Premium
Repulpable, double-sided splicing tape
Product description
tesa® 61170 EasySplice® CalenderLine Premium is a repulpable double-sided integrated flying splice tape consisting of a flat-back paper and a modified water soluble acrylic adhesive
tesa® 61170 EasySplice® CalenderLine Premium features especially:
- Very high shear strength
- Very high heat resistance
- Very good adhesion values on coated paper
- Good adhesion values on uncoated paper
- High tack properties
- Low splice thickness
- Good repulpability over full pH-range (pH3 –pH9)
Following functions are provided:
- Slit liner for the secure fixation of the top paper roll layer
- Adhesive formulation adjusted to high temperature and pressure requirements with sufficient tack properties for good contact between expiring web and new reel
- One splitting strip with paper backing, with low splitting force for a smooth and easy opening of the new paper reel without having open adhesive residues
Colour: Blue
Product details and specifications
Application Fields
tesa® 61170 EasySplice® CalenderLine Premium is particularly suitable for:
- Flying splices at off-line calenders
Product Construction
| Backing material | flat paper |
| Color | blue |
| Total thickness | 90 µm |
| Type of adhesive | repulpable tackified acrylic |
| Type of liner | repulpable siliconised paper |
Properties / Performance Values
| Elongation at break | 6 % |
| Tensile strength | 30 N/cm |
| Static shear resistance | good |
| Shelf life time (packed) < 25°C | 12 months |
| Tack | medium |
Properties / Performance Values
| Elongation at break | 6 % |
| Tensile strength | 30 N/cm |
| Static shear resistance | good |
| Shelf life time (packed) < 25°C | 12 months |
| Tack | medium |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
