Product Construction
| Backing material | PE foam with film lamination |
| Total thickness | 430 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |

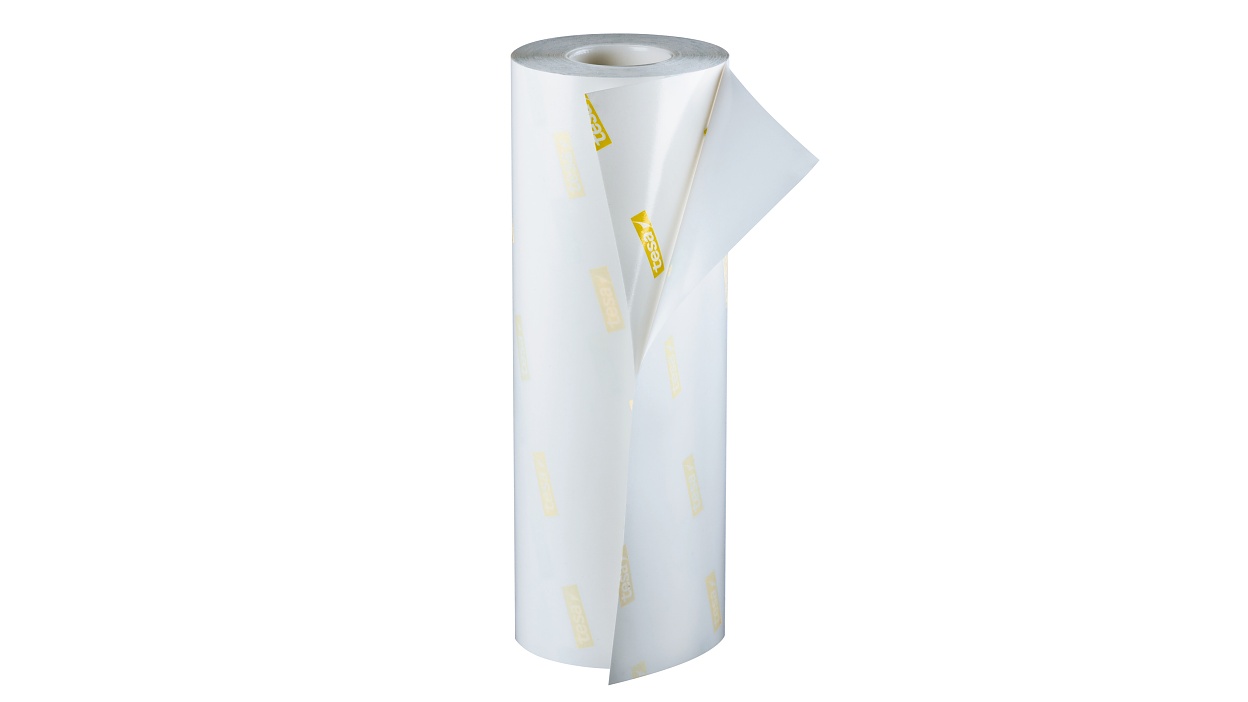

tesa® Softprint 52118 Steel Master TP
Foam plate mounting tape (extra soft) for printing screens
Product description
tesa® 52118 Softprint x-soft 380µm is a double-coated foam tape, designed specifically for mounting photopolymer plates with a thickness of 1.14mm (0.045") or 1.70mm (0.067") in flexographic label printing.
The unique properties of tesa® 52118 Softprint x-soft 380µm make it the ideal choice for finest screen print, especially where harder digital plates are in use. Additionally, the extra cushion allows faster printing speeds, whilst reducing the effects of unwanted press "bounce".
Foam properties
• The extra soft foam is the ideal plate mounting solution in combination with harder, digital plates (for finest screen print)
• Highly compressible foam, with superior recovery behavior for excellent print quality
• Long lasting recovery characteristic for extended and high speed print runs
• Low thickness tolerances for quick print preparation and reduced waste
Adhesive properties
• Secure bonding to sleeve / cylinder, with specially enhanced removal properties
• Optimal bonding to plate to avoid edge lifting or plate movement, with residue-free removal
Additional properties
• The structured PP-liner prevents the formation of air pockets when plate mounting
• Yellow color coding of logo on backing indicates extra soft foam category
Product details and specifications
Application Fields
tesa® 52118 Softprint x-Soft is a 380µm (15mil) category double-coated foam tape, designed spedifically for mounting photopolymer plates with a thickness of 1.14mm (0.045") or 1.70mm (0.067") in flexographic label printing.
Product Construction
| Backing material | PE foam with film lamination |
| Total thickness | 430 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |
Properties / Performance Values
| Thickness category | 380 |
| Hardness | extra soft |
| Color of logo | yellow |
Properties / Performance Values
| Thickness category | 380 |
| Hardness | extra soft |
| Color of logo | yellow |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
