Product Construction
| Backing material | PE foam with film lamination |
| Total thickness | 430 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |

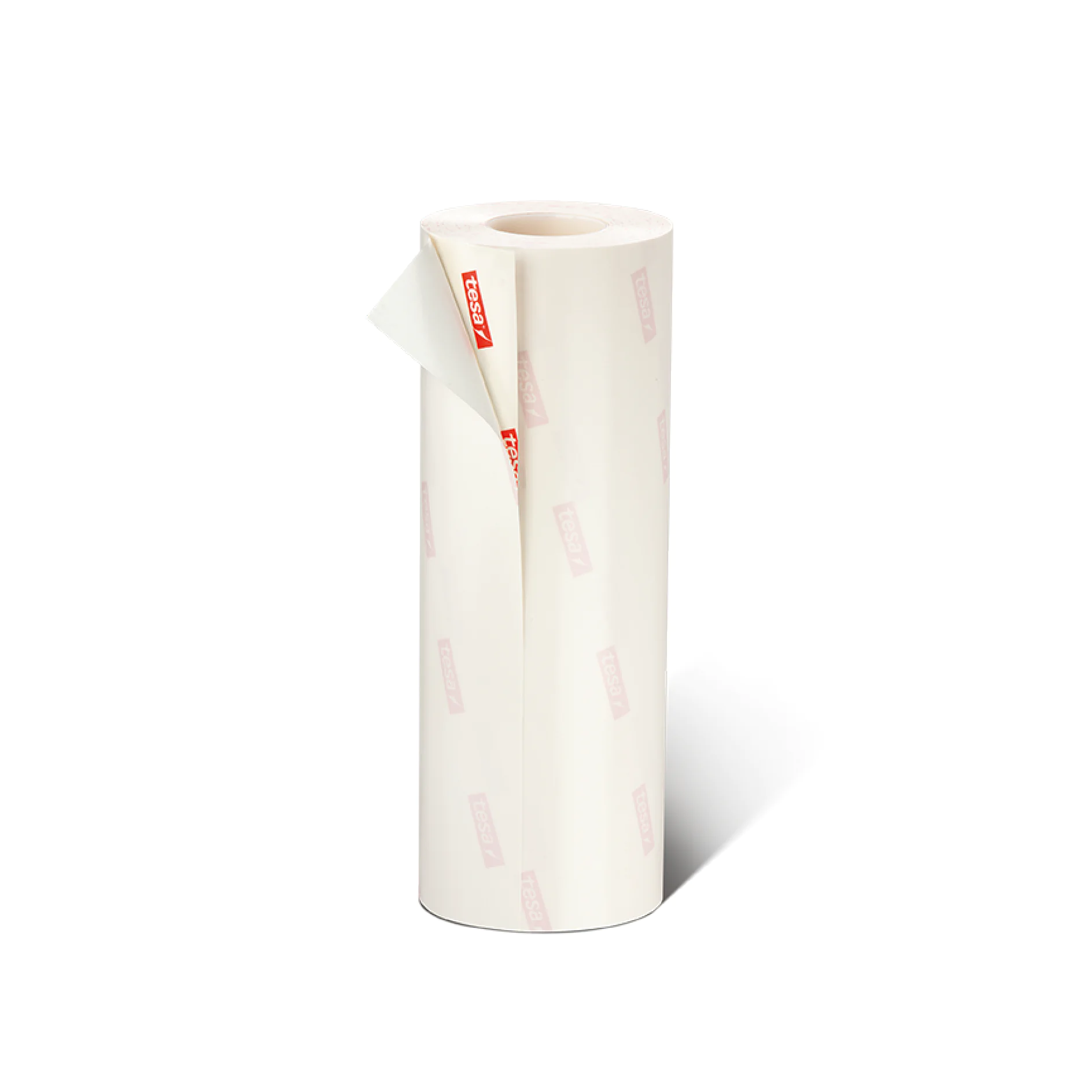

tesa® Softprint 52817 Secure
Plate mounting tape for photopolymer plates in flexographic printing
Product description
Double-coated foam tape.
Foam Properties
- Low thickness tolerance
- Long lasting, constant recovery characteristics
Adhesive Properties
- Low tack surface characteristics
- Strong adhesion on both sides
- Solvent resistance
Additional Properties
- Structured PP liner
- Logo color indicates foam hardness
Product details and specifications
Application Fields
Mounting of 1.14 mm (0.45‘‘) and 1.70 mm (0.067‘‘) thickness, PET backing, flexographic printing plates onto steel / alu / PU and glassine cylinders and sleeves.
Product Construction
| Backing material | PE foam with film lamination |
| Total thickness | 430 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |
Properties / Performance Values
| Hardness | soft |
| Thickness category | 380 |
| Color of logo | red |
Properties / Performance Values
| Hardness | soft |
| Thickness category | 380 |
| Color of logo | red |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
