Product Construction
Backing material | none |
Colour of liner | brown |
Thickness of liner | 71 µm |
Total thickness | 50 µm |
Type of adhesive | acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |

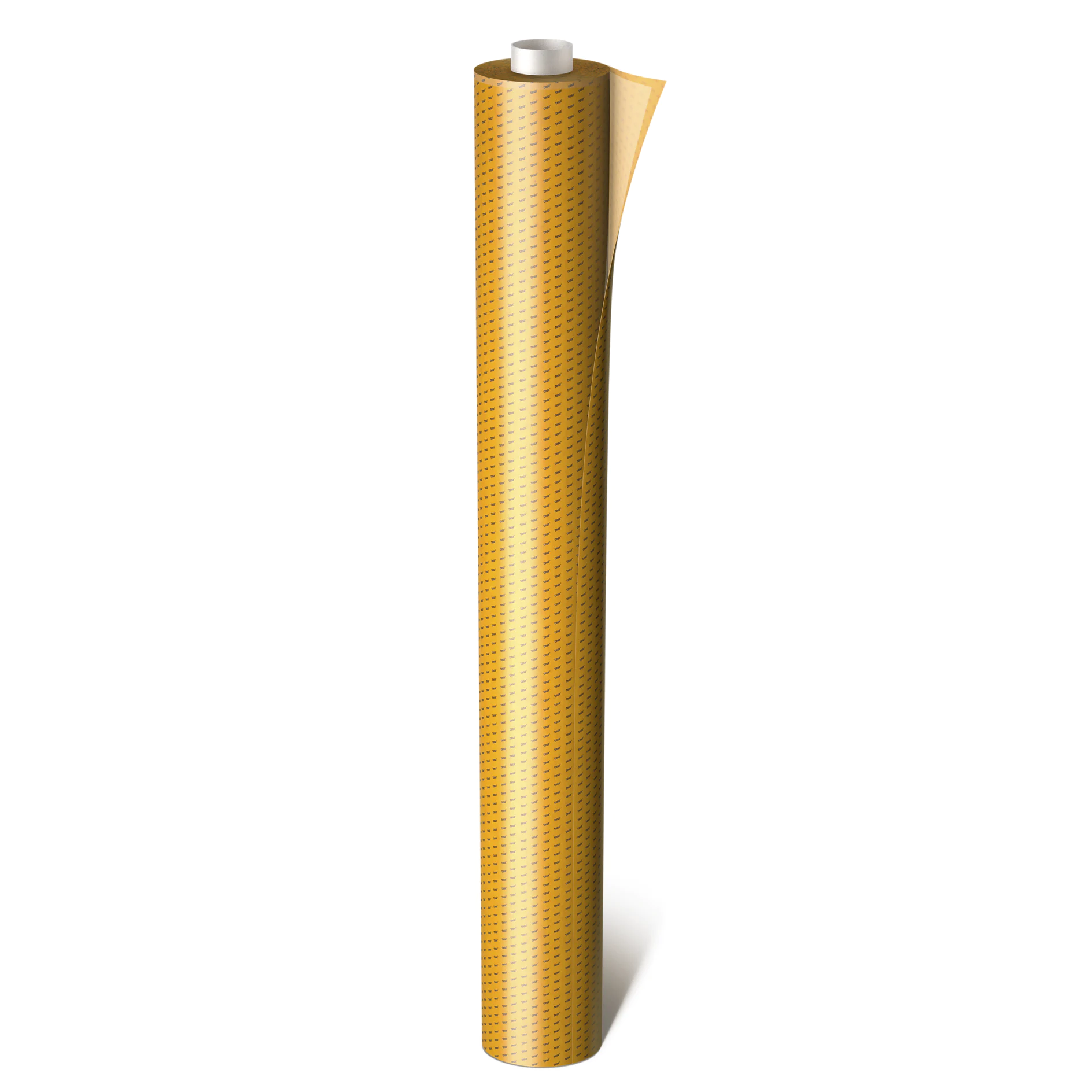

Acrylic transfer tape
tesa® 4900 consists of a transparent pure acrylic adhesive. The adhesive is transparent, ageing resistant and has a high initial tack.
tesa® 4900 also withstands elevated temperatures.
Backing material | none |
Colour of liner | brown |
Thickness of liner | 71 µm |
Total thickness | 50 µm |
Type of adhesive | acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |
Backing material | none |
Colour of liner | brown |
Thickness of liner | 71 µm |
Total thickness | 50 µm |
Type of adhesive | acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |
Temperature resistance long term | 80 °C |
Chemical resistance | very good |
Static shear resistance at 40°C | medium |
Static shear resistance at 23°C | medium |
Ageing resistance (UV) | very good |
Temperature resistance short term | 200 °C |
Humidity resistance | good |
Tack | very good |
Softener resistance | medium |
Temperature resistance long term | 80 °C |
Chemical resistance | very good |
Static shear resistance at 40°C | medium |
Static shear resistance at 23°C | medium |
Ageing resistance (UV) | very good |
Temperature resistance short term | 200 °C |
Humidity resistance | good |
Tack | very good |
Softener resistance | medium |
Adhesion to ABS (initial) | 2.9 N/cm |
Adhesion to ABS (after 14 days) | 4.6 N/cm |
Adhesion to Aluminium (initial) | 2.7 N/cm |
Adhesion to Aluminium (after 14 days) | 3.1 N/cm |
Adhesion to PC (initial) | 3.1 N/cm |
Adhesion to PC (after 14 days) | 5 N/cm |
Adhesion to PE (initial) | 0.8 N/cm |
Adhesion to PE (after 14 days) | 1 N/cm |
Adhesion to PET (initial) | 2.4 N/cm |
Adhesion to PET (after 14 days) | 3.7 N/cm |
Adhesion to PP (initial) | 1.3 N/cm |
Adhesion to PP (after 14 days) | 2.6 N/cm |
Adhesion to PS (initial) | 3.1 N/cm |
Adhesion to PS (after 14 days) | 3.8 N/cm |
Adhesion to PVC (initial) | 2.7 N/cm |
Adhesion to PVC (after 14 days) | 5.6 N/cm |
Adhesion to Steel (initial) | 3.4 N/cm |
Adhesion to Steel (after 14 days) | 3.8 N/cm |
Adhesion to ABS (initial) | 2.9 N/cm |
Adhesion to ABS (after 14 days) | 4.6 N/cm |
Adhesion to Aluminium (initial) | 2.7 N/cm |
Adhesion to Aluminium (after 14 days) | 3.1 N/cm |
Adhesion to PC (initial) | 3.1 N/cm |
Adhesion to PC (after 14 days) | 5 N/cm |
Adhesion to PE (initial) | 0.8 N/cm |
Adhesion to PE (after 14 days) | 1 N/cm |
Adhesion to PET (initial) | 2.4 N/cm |
Adhesion to PET (after 14 days) | 3.7 N/cm |
Adhesion to PP (initial) | 1.3 N/cm |
Adhesion to PP (after 14 days) | 2.6 N/cm |
Adhesion to PS (initial) | 3.1 N/cm |
Adhesion to PS (after 14 days) | 3.8 N/cm |
Adhesion to PVC (initial) | 2.7 N/cm |
Adhesion to PVC (after 14 days) | 5.6 N/cm |
Adhesion to Steel (initial) | 3.4 N/cm |
Adhesion to Steel (after 14 days) | 3.8 N/cm |
Download the files below for more technical details and information on this product.
