Product Construction
| Backing material | PET cloth |
| Total thickness | 230 µm |
| Type of adhesive | advanced acrylic |

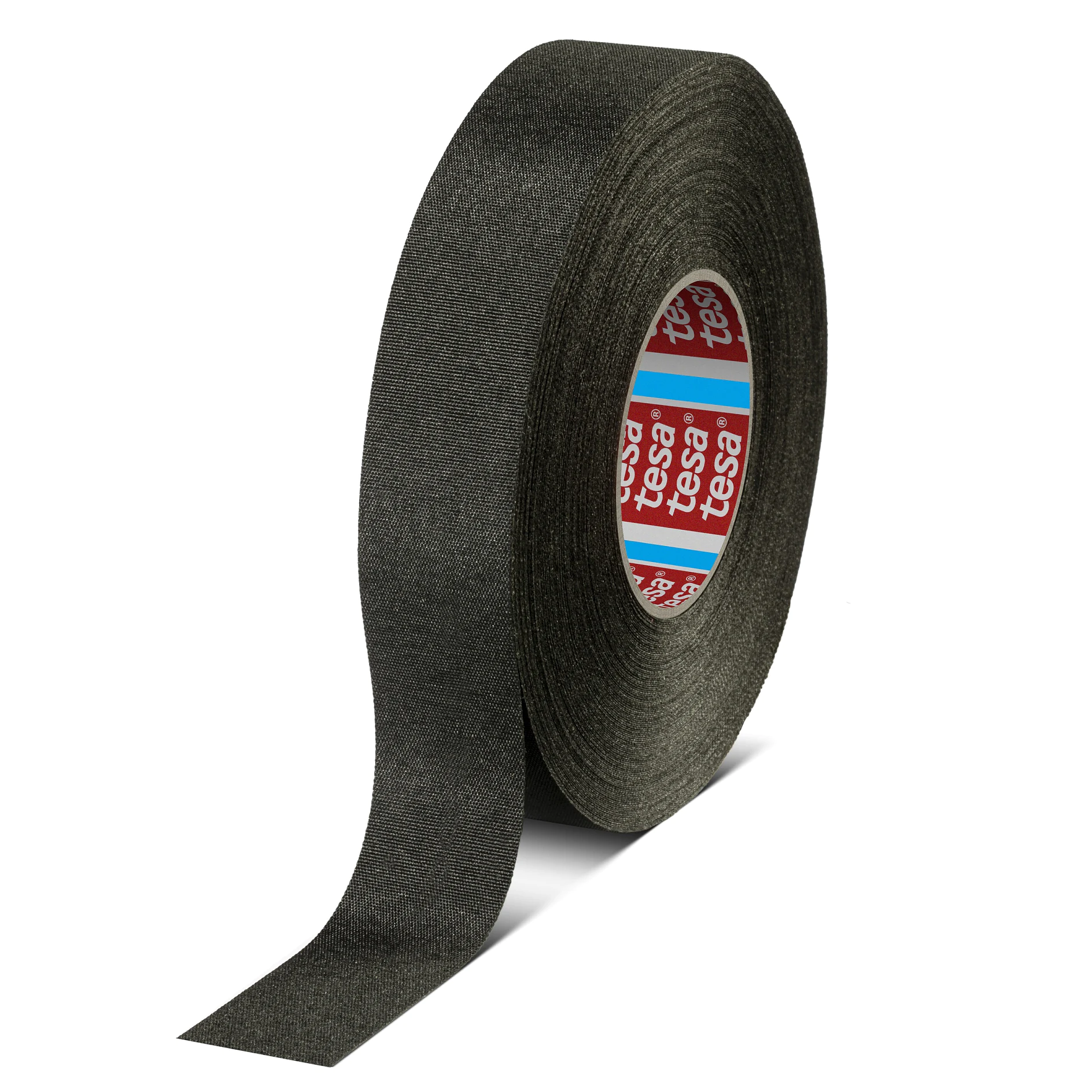

tesa® 51037
Hand-tearable PET cloth tape for high abrasion protection of automotive harnesses
Product Features
- High abrasion resistance
- High temperature resistance
- Hand-tearable
Product description
tesa® 51037 is a hand-tearable PET cloth tape with a solvent-free advanced acrylic adhesive. It is one of the first tapes on the market providing hand-tearability and high abrasion resistance of automotive harnesses. With the new adhesive formula, tesa® 51037 is highly resistant to flagging and ensures secure closure.
Product details and specifications
Product Features
- High abrasion resistance
- High temperature resistance
- Hand-tearable
- Excellent cable compatibility
- Resistant to aging
- Can withstand environmental influences
- Flame-retardant
- Halogen-free
- Constant unwind force
- Flexible and smooth
Application Fields
tesa® 51037 has been specially designed for bundling and wire protection against abrasion. The main application field is the engine compartment of a car, with demanding temperature-related and environmental conditions.
Product Construction
| Backing material | PET cloth |
| Total thickness | 230 µm |
| Type of adhesive | advanced acrylic |
Properties / Performance Values
| Elongation at break | 30 % |
| Tensile strength | 80 N/cm |
| Temperature resistance max. | 150 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Unwind force (roll width > 9mm) | 13 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Noise damping (LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width ≤ 9mm) | 13 N/roll (30 m/min) |
Properties / Performance Values
| Elongation at break | 30 % |
| Tensile strength | 80 N/cm |
| Temperature resistance max. | 150 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Unwind force (roll width > 9mm) | 13 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Noise damping (LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width ≤ 9mm) | 13 N/roll (30 m/min) |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
Additional Info
- Standard widths: 19, 25 mm
- Standard lengths: 25 m
- Further dimensions are available upon request
1 depending on wire insulation
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
