Product Construction
| Backing material | aluminium foil |
| Color | silver |
| Colour of liner | white |
| Thickness of liner | 85 µm |
| Thickness of tape | 205 µm |
| Total thickness | 205 µm |
| Type of adhesive | synthetic rubber |
| Type of liner | paper |

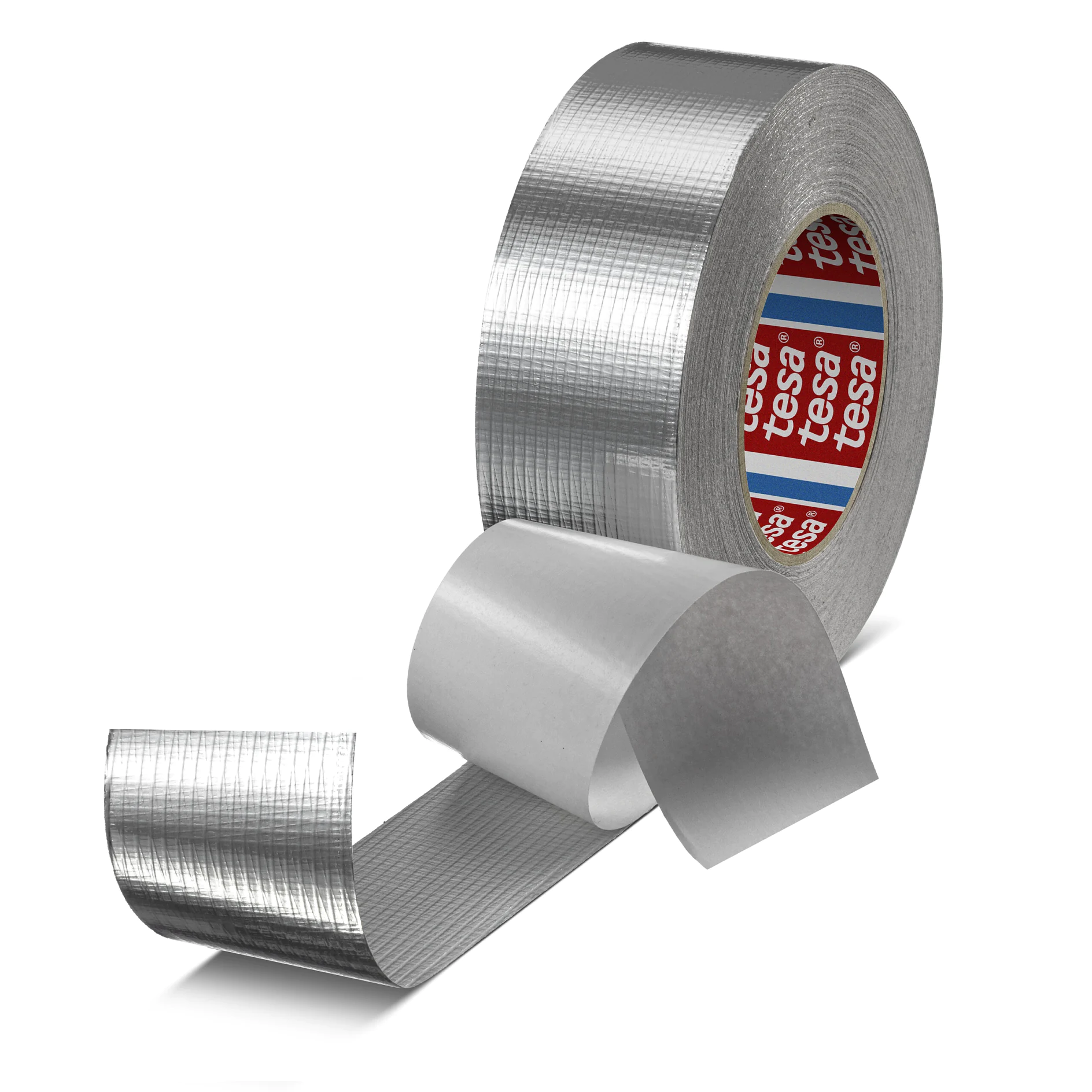

tesa® 51495 PV2
Reinforced aluminum foil tape
Product description
tesa® 51495 PV2 consists of aluminum foil reinforced with polyethylene scrim which is coated with a synthetic rubber based adhesive.
Features:
- Release liner for ease of unwind
- Vapor barrier
- Heat and radiation reflective properties
- Excellent adhesion to own backing
- High bond strength
- Suitable for operating temeratures from -20°C to 80°C
Product details and specifications
Application Fields
- Joining roofing and wall insulation
- Wrapping of pipes
- Sealing air conditioning ducts
Product Construction
| Backing material | aluminium foil |
| Color | silver |
| Colour of liner | white |
| Thickness of liner | 85 µm |
| Thickness of tape | 205 µm |
| Total thickness | 205 µm |
| Type of adhesive | synthetic rubber |
| Type of liner | paper |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 45 N/cm |
| Temperature resistance min. | -20 °C |
| Liner release force | 0.3 N/cm |
| Operation temperature from | -20 °C |
| Hand tearability | no |
| Operation temperature up to | +80 °C |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 45 N/cm |
| Temperature resistance min. | -20 °C |
| Liner release force | 0.3 N/cm |
| Operation temperature from | -20 °C |
| Hand tearability | no |
| Operation temperature up to | +80 °C |
Adhesion to Values
| Adhesion to steel | 9 N/cm |
Adhesion to Values
| Adhesion to steel | 9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
