Product Construction
| Backing material | none |
| Color | amber |
| Total thickness | 200 µm |
| Type of adhesive | nitrile rubber / phenolic resin |
| Type of liner | glassine |
tesa HAF® 9401
Double-sided reactive heat activated film
Product description

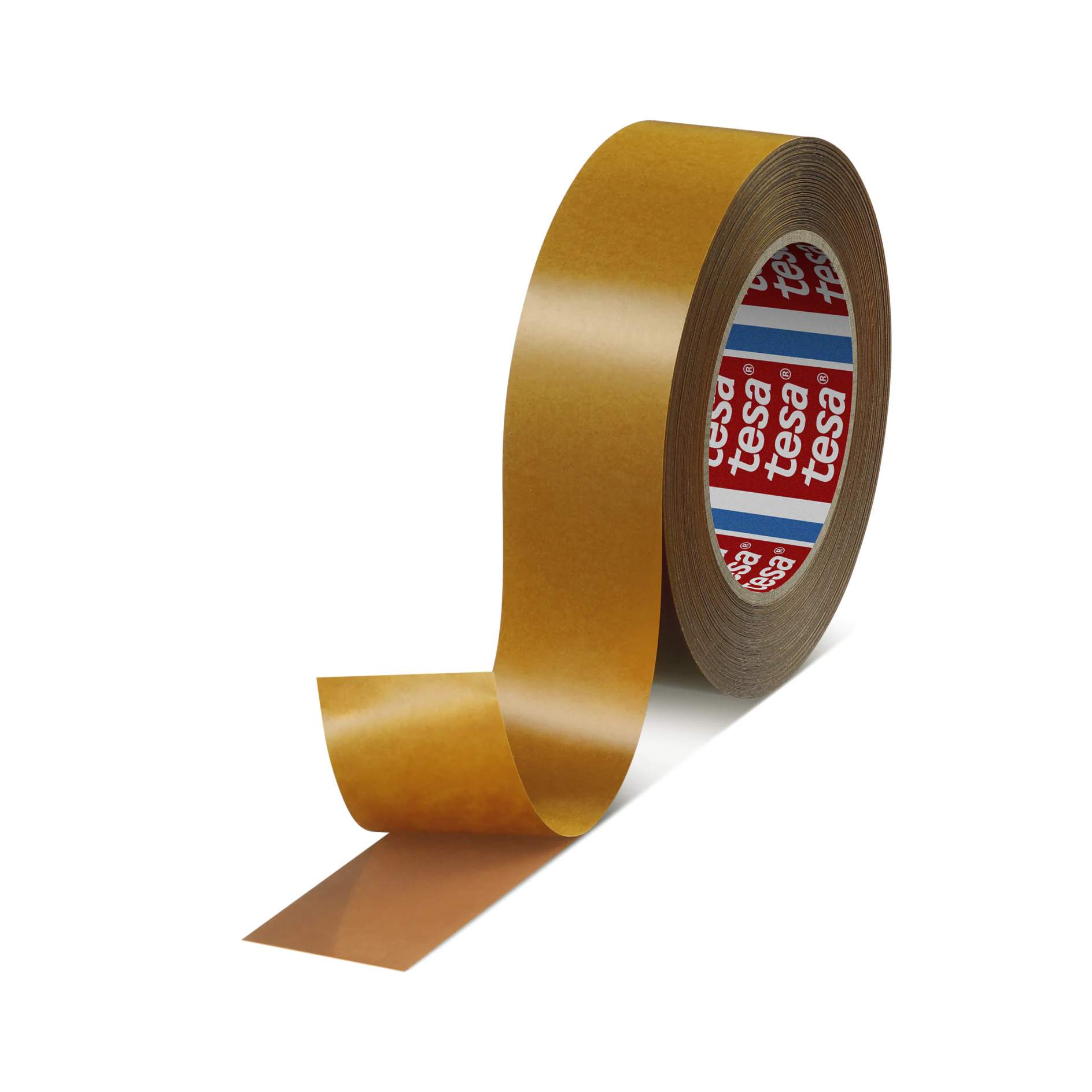

tesa HAF® 9401 is a reactive heat activated film based on phenolic resin and nitrile rubber. This amber double sided tape has no backing. It is protected by a strong paper liner and can easily be slit and die cut.
At room temperature tesa HAF® 9401 is not tacky. It is activated by heat and starts to become tacky at 90 °C for pre-lamination. In a second application step heat and pressure is applied over a certain period of time.
After curing tesa HAF® 9401 reaches:
1 Very high bonding strength
1 High temperature resistance
1 Resistance against oil and solvents
1 Excellent chemical resistance
1 Bonds remain flexible and elastic
Product details and specifications
Application Fields
It is suitable for bonding of all thermal resistant materials such as metal, glass, plastic, wood and textiles.
1 Friction linings for clutch discs
1 Friction linings for synchronizer rings
1 Friction linings for clutch discs
1 Friction linings for synchronizer rings
Product Construction
| Backing material | none |
| Color | amber |
| Total thickness | 200 µm |
| Type of adhesive | nitrile rubber / phenolic resin |
| Type of liner | glassine |
Properties / Performance Values
| Bonding strength (push-out) | 12 N/mm² |
| Bonding strength (dynamic shear) | 12 N/mm² |
Properties / Performance Values
| Bonding strength (push-out) | 12 N/mm² |
| Bonding strength (dynamic shear) | 12 N/mm² |
Additional Info
Processing:
1. Pre-lamination:
tesa HAF® 9401 is laminated to the first substrate. For this process we recommend a temperature between 120 °C and 140 °C and a slight pressure of 0.5 - 2.5 bar for 3 - 10 sec.
2. Bonding:
The liner is removed from the tape after pre-lamination. The bonding conditions depend on the application. Following parameters can be regarded as a guideline:
1 Temperature: 180 – 230 °C
1 Pressure: > 8 bar
1 Time: 3 min – 30 min
3. Tempering (optional)
To reach the maximum bonding strength the bonded parts can be tempered at 180 - 230°C for 30 - 60 min without pressure.
Bonding strength values were obtained under standard laboratory conditions. Value is guaranteed clearance limit checked with each production batch (Material: Etched aluminium test specimen / Bonding conditions: Temp. = 120 °C; p = 10 bar; t = 8 min)
To reach maximum bonding strength surfaces should be clean and dry. Storage conditions according to tesa HAF® shelf life concept.
1. Pre-lamination:
tesa HAF® 9401 is laminated to the first substrate. For this process we recommend a temperature between 120 °C and 140 °C and a slight pressure of 0.5 - 2.5 bar for 3 - 10 sec.
2. Bonding:
The liner is removed from the tape after pre-lamination. The bonding conditions depend on the application. Following parameters can be regarded as a guideline:
1 Temperature: 180 – 230 °C
1 Pressure: > 8 bar
1 Time: 3 min – 30 min
3. Tempering (optional)
To reach the maximum bonding strength the bonded parts can be tempered at 180 - 230°C for 30 - 60 min without pressure.
Bonding strength values were obtained under standard laboratory conditions. Value is guaranteed clearance limit checked with each production batch (Material: Etched aluminium test specimen / Bonding conditions: Temp. = 120 °C; p = 10 bar; t = 8 min)
To reach maximum bonding strength surfaces should be clean and dry. Storage conditions according to tesa HAF® shelf life concept.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
